Master Exposure Control ^TM results in no-retakes and high patient throughput

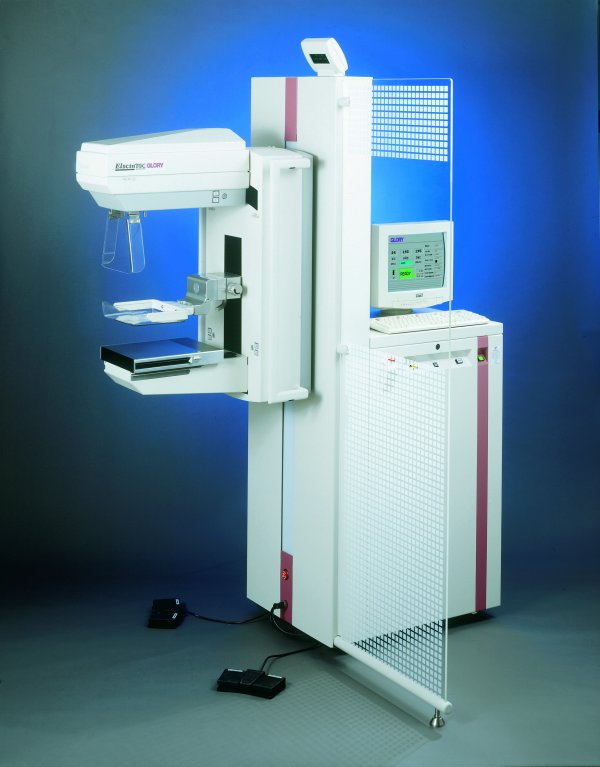

Mammography system for screening and diagnostic applications
Minimal patient dose with superb resolution
Computerized architecture facilitates upgrading
Multi-lingual operation

GENERATOR

Type:	High frequency, 120 kHz constant potential output, oil-free technology
Rating:	3 kW
mAs Range:	1-600
kV Range:	20 – 39 kV (in 1 kV increments)
Time Range:	0.05-6.0 sec. on large focal spot 0.05-5.0 sec. on small focal spot

FILTRATION

Material:	Molybdenum (0.030 mm) Rhodium (0.025 mm) (optional for MAMlite)
Selection:	Automatic or manual

C-ARM

SID:	60 cm
Film Sizes:	18 x 24 cm and 24 x 30 cm
Collimator:	Interchangeable with automatic identification
C-Arm Locks:	Electromagnetic
C-Arm Rotational Movement:	+ 165� /- 180� digital display
C-Arm Vertical Movement:	90 cm motorized

X-RAY TUBE

	GLORY	MAMlite
Type:	Rotating biangular anode	Rotating anode
Anode Material:	Molybdenum	Molybdenum
Window:	Beryllium	Beryllium
Target Angle:	16�/LFS, 10�/SFS	16�
Large focal spot:	0.3 mm	0.3 mm
Small focal spot:	0.1 mm	0.1 mm
Max. tube current:	Large focal spot 100 mA Small focal spot 29 mA	Large focal spot 100 mA Small focal spot 18 mA
Anode Heat Capacity:	300,000 HU	300,000 HU
Housing Heat Capacity:	500,000 HU	500,000 HU

COMPRESSION ASSEMBLY

Compression :	Motorized (initiated via footswitch) or manual
Decompression:	Motorized or manual (automatic release-programmable)
Compression Force:	Selectable
Compression Display:	Force and breast thickness (digital display)

EXPOSURE CONTROL TECHNIQUES

Master Exposure Control ^TM	Fully automatic on-line exposure control (kV, mAs, filter) based on solid-state radiation detector
Operation Modes:	ACO – Automatic Contrast Optimization Quick – Dose reduction AEC – Semi-automatic exposure Manual
Film Density Control:	15 settings in 10% steps
Film Screen Combinations:	7 presets

SYSTEM

Architecture:	Computer controlled
Interlocks:	Double exposure prevention C-arm movement blocked during breast compression Exposure disabled if cassette and/or collimator not in place
User Interface:	Multi-lingual guidance
Connectivity:	HIS/RIS support (optional)

BUCKY GRID

Sizes:	18 x 24 cm and 24 x 30 cm
Type:	Double Pass
Grid Ratio:	5:1, 36 lines/cm

STANDARD ACCESSORIES *

GLORY	MAMlite
Bucky Grid: 18 x 24 cm Compression Paddle: 18 x 24 cm Apertures Foot Pedals Face Shield Operator Shield Automatic Filter Selection Spot Compression Paddle Magnification Tray 1.5x Front Display	Bucky Grid: 18 x 24 cm Compression Paddle 18 x 24 cm Apertures Foot Pedals Patient Face Shield Operator Shield

OPTIONAL ACCESSORIES *

GLORY	MAMlite
Bucky Grid: 24 x 30 cm Cassette Holders: 18 x 24 cm and 24 x 30 cm Optical Marker Label Printer Film Writing Device Hand Switch Accessories Cart Magnification Tray 1.7x Compression Paddles: 24 x 30 cm 15 x 21 cm Pyramid Paddle Cleopatra Paddle Window Paddle MAMMOGUIDE Stereotactic Biopsy System	Bucky Grid: 24 x 30 cm Cassette Holders: 18 x 24 cm and 24 x 30 cm Optical Marker Label Printer Film Writing Device Hand Switch Accessories Cart Magnification Tray 1.5x and 1.7x Compression Paddles: 24 x 30 cm 15 x 21 cm Pyramid Paddle Cleopatra Paddle Window Paddle Spot Paddle Automatic Filter Selection Front Display

DIMENSIONS AND WEIGHT

Height cm (in):	195 (76.7)
Width cm (in):	57.5 (22.7)
Depth cm (in):	142.5 (56)
Weight kg (lb):	520 (1,144)

OPERATOR SHIELD cm (in):

198 x 61 (78 x 24)

POWER REQUIREMENTS

Single phase
220/230/240V�10%, 50 Hz
16A Type G (Slow blow)/0.2 Ohm

* For detailed accessories description – see separate Accessories
