MAMMOGUIDE® STEREOTACTIC BIOPSY SYSTEM
Computerized Stereotactic Biopsy System For GLORY Mammography Unit

Click here
  • Multi-lingual
  • Versatile unit for 360° lesion access
  • Simple set-up for instant screening-stereotaxis changeover
  • Advanced graphical based application for safe and simple guidance
  • Supports all commercially available biopsy guns and needles
  • Versatile software applications, meeting all clinical needs
Click here

The fully computerized stereotactic biopsy system offers a non-surgical alternative for breast biopsy. It eliminates the need for a separate stereotaxis unit and expands the versatility of the existing mammography system. It can be used for core biopsy tissue sampling, FNA and preoperative wire localization. The system retains its original SID and geometry for improved lesion visualization and enlarged maneuvering space.
The system’s components include: the MAMMOGUIDE® robot, backlit digitizer with cursor device, hand control, a mobile cart and a dedicated collimator.

STEREOTACTIC APPLICATION

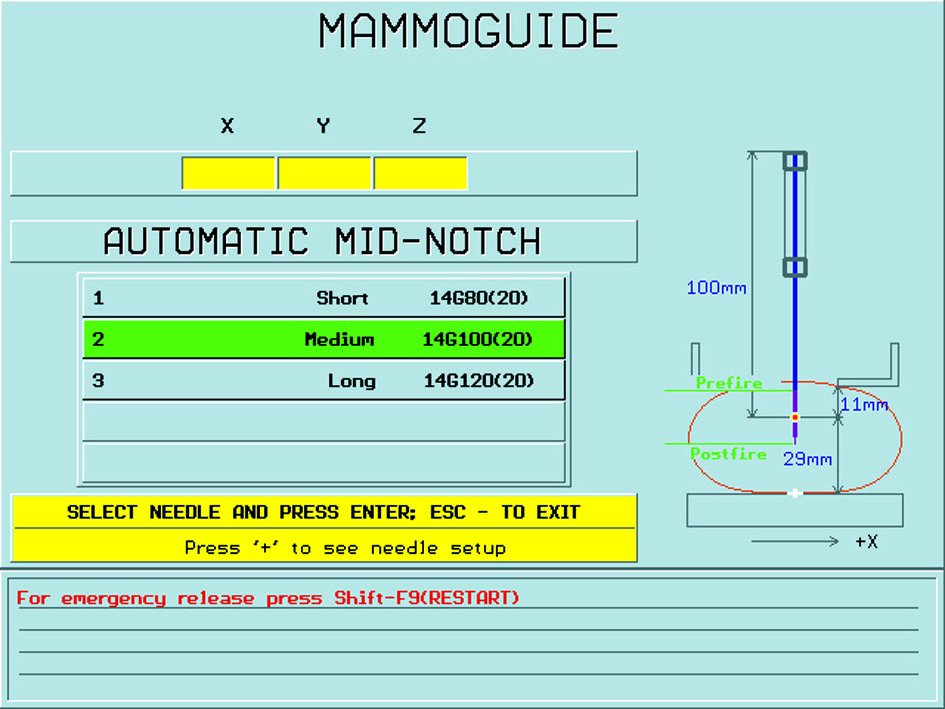

  • Step-by-step graphical guidance through the biopsy procedure for safe and simple operation
  • Coordinates verification routine
  • Use of SCOUT image for targeting to ease lesion identification
  • Automatic Core Biopsy Protocol for simple and fast management
  • Manual Core Biopsy Protocol provides simple solution for ‘hard to get’ lesions
  • Optimized Aspiration and Needle Localization application
  • Simple and fast needle management to ease maneuvering between aspiration and biopsy procedures
  • Integrated Master Exposure ControlTM protocol for optimized imaging quality
Ckick here
Click here

TECHNICAL DATA

Tube Angulation: ± 15° (independent of C-Arm position)
SID: 60 cm
Angulation Movement: Motorized
Collimation: Dedicated aperture
Biopsy Projections: 360°
Inage Size: 60 x 87 mm

ACCURACY

Typical: X, Y direction < 0.5 mm
Z direction < 0.8 mm
Maximum (all directions): <1 mm
Using SCOUT image: X, Y direction < 1 mm (typical < 0.6 mm)
Z direction < 3 mm (typical < 1.5 mm)

NEEDLE HOLDER

Movement: Motorized (computer-controlled)
Movement Range: X = 50 mm,
Y = 40 mm,
Z = 130 mm
Needle Lengths: 60-160 mm
Needle Holder: Double with an expandable support
Needle Insert Sizes: Supports commercially available gauges

MAINTENANCE

Needle Holder: Detachable and sterilizable
Compression Paddle: Detachable for ease of cleaning

OPERATION FEATURES

System Control: PC-based system
C-Arm Movement Interlock: With breast compression
Needle movement interlock: With needle insertion
Operator Guidance: Multi-lingual
Front Digital Display: Target coordinates, stroke margin

MAMMOGUIDE® MECHANICAL SPECIFICATION

Height, cm(in): 42 (16.5)
Width, cm (in): 35 (13.8)
Depth, cm (in): 33 (13)
Weight, kg (lb): 9.8 (21,6)

Cintec Medical Ltd. reserves the right to make changes in specifications or to discontinue any product, at any time without notice or obligation, and will not be liable for any consequences resulting from the use of this publication
